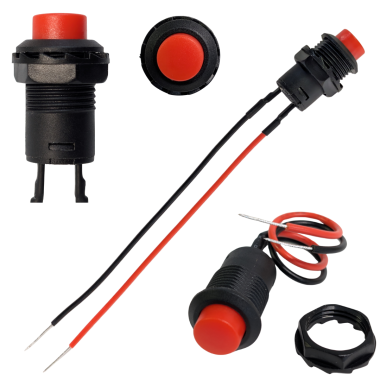

Mini Push Button Switch - Red

12mm latching red SPST switch with stripped, tinned 2-pin wires
SKU: PBS11W
Qty:
Add to Cart Buy Now
Print

Mini Push Button Switch - Red

12mm latching SPST red push button switch with 2-pin terminals.

Product Specifications

Product Name Mini Push Button Switch - Red
Operation Type Latching
Contact Type Push ON / Push OFF
Color Red
Poles SPST
Rating 3A 125V / 1A 250V
Terminals 2 Pins, Pre-soldered
Wire Length 10cm / 4", stripped and tinned 10mm
Button Diameter 9mm / 0.35"
Cap Diameter 14.5mm / 0.57"
Hole Diameter 11.5mm / 0.45"

Applications and Benefits:

  • Used in DIY electronics and panel control systems
  • Red color provides clear visual indication
  • Pre-wired with stripped and tinned wires for quick installation

Caution:

Ensure correct voltage rating before use to avoid circuit damage.

  • Availability: In Stock
  • Model: PBS11W
  • Brand: Mini-Science
